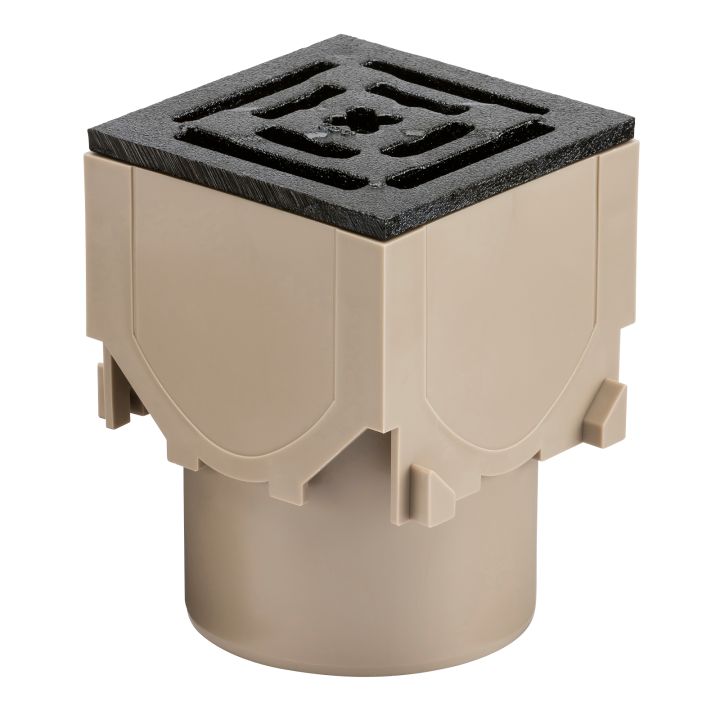

ACO RainDrain Corner Unit With Iron Grating

Item Code: 395600569

ACO RainDrain Corner Unit With Iron Grating
  • ACO RainDrain Corner Unit With Iron Grating
  • ACO RainDrain Corner Unit With Iron Grating
£46.35Ex VAT£55.62 Inc VAT
Click & CollectAvailable for collection
DeliveryFree delivery available (restrictions apply)

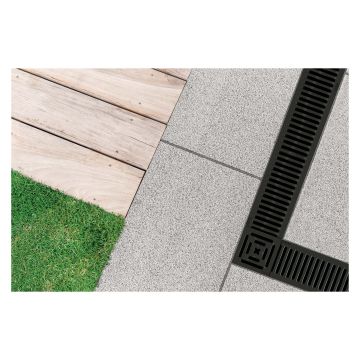

An ACO RainDrain Corner Unit with iron grating designed to provide surface water drainage as part of the ACO RainDrain Interlocking Channel Drain System. This drain corner unit creates a 90° bend in the run of channel without the need for mitring the unit on site. It can also be used to form T junction or for connecting to four runs with a single unit. The ACO RainDrain Corner Unit is suitable for garage thresholds, patios, pathways and block paving.


  • Designed to work alongside the ACO RainDrain interlocking channel drain system
  • Comes with a galvanised steel grate with an A15 (pedestrian) weight load class rating
  • Four knock-out sides, allowing you to make a 90° left or right-hand corner
  • Male and female connections to connect to RainDrain channels
  • A bottom knock-out outlet enables you to connect 110mm pipework
  • Removable grate for inspection
  • Fully certified to Load Class A 15 BE EN 1433:2002
Product BrandAco
MaterialPolymer concrete
Weight (kg)0.47
Width Metric (mm)135


  • CE
  • UKCA
Data Sheets
Supplier Website https://www.aco.co.uk
