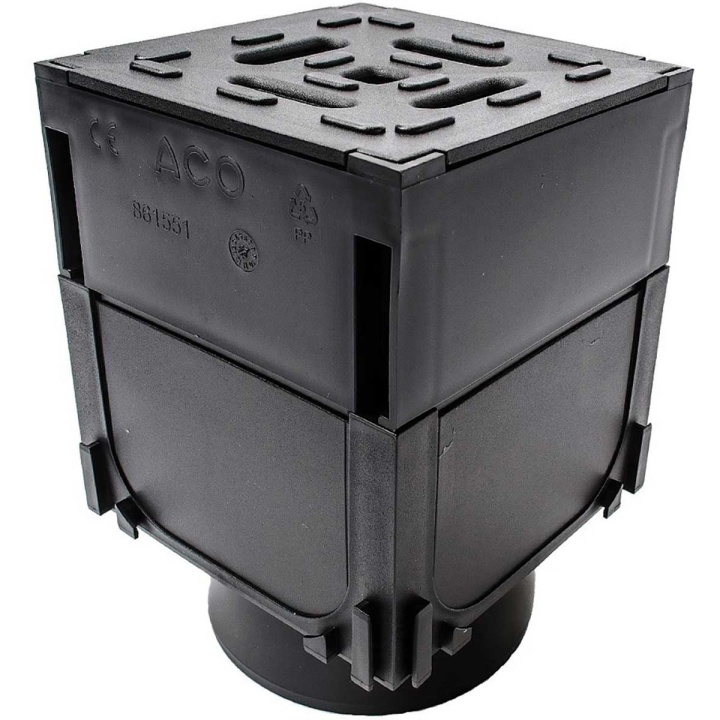

ACO HexDrain® Brickslot Corner Unit Assembly with Black Plastic Slotted Grating and Vertical Outlet
Item Code: 395600543
£33.47Ex VAT£40.16 Inc VAT
Click & CollectAvailable for collection
DeliveryFree delivery available (restrictions apply)
Click & Collect
Click & Deliver
OverviewSpecifications
Data Sheets
The ACO HexDrain® Brickslot Corner/Access Unit is a versatile component designed to connect and maintain ACO HexDrain Brickslot channel installations. It allows up to four drainage runs to meet at 90° junctions, enabling flexible layout designs for patios, paths, driveways, and threshold drainage areas.
Discreet 10mm inlet delivers a minimalist surface drainage solution for pedestrianised installations (A 15 Load Class). Black polypropylene channel with black plastic slot grating. Offset Brickslot grating is suitable with paving products up to 60mm thickness and allows installation adjacent to a wall.
Benefits
- Discreet 10mm inlet slot
- Channel manufactured from high-strength polymer concrete
- Channel shape anchors product into concrete surround
- 110mm knock-outs for connection to onward drainage
- Brickslot grating and access cover available in either galvanised steel or stainless steel
- The grating’s offset profile is suitable for use with paving products up to and including 60mm thickness and allows installation adjacent to a wall
- RainDrain® channels and Brickslot gratings interlock for a quick and easy installation
- Full range of accessories for a professional installation. Each run of RainDrain® Brickslot requires an access cover to the channel beneath to enable cleaning
| Product Brand | Aco |
|---|---|
| Warranty Period | 1 Year |
| Height Metric (mm) | 185 |
| Width Metric (mm) | 125 |
| Depth | 193 |
| Diameter Metric (mm) | 102 |
| Length | 125mm |
| Height | 193mm |
| Width | 125mm |
| Manufacturer Code | 319560 |
Certifications
- CE
- ISO 9001
- ISO 14001
Supplier Website https://www.aco.co.uk
