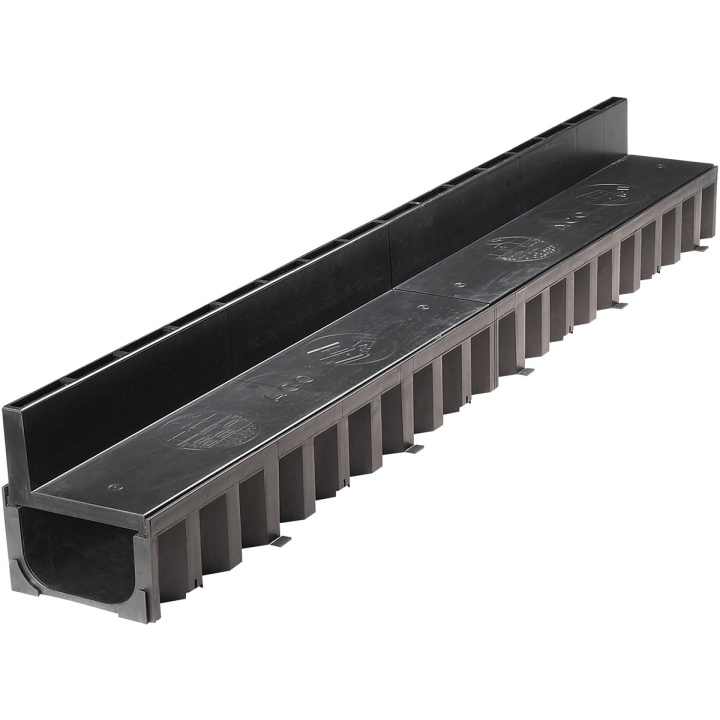

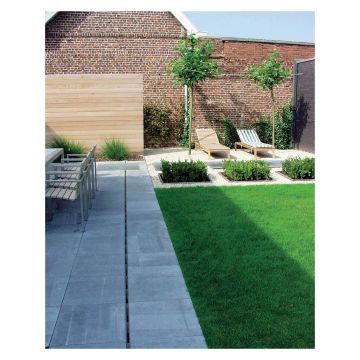

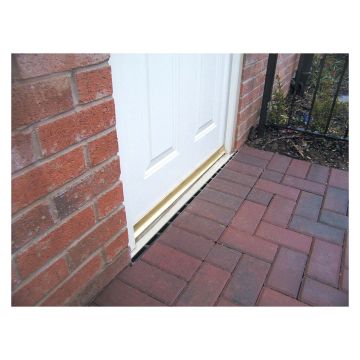

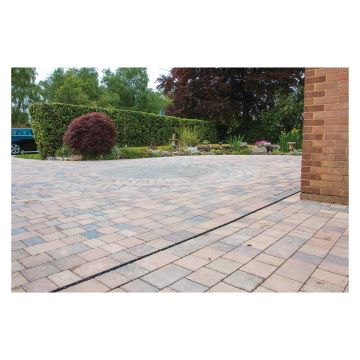

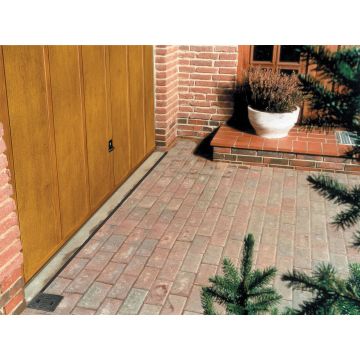

The ACO HexDrain® Brickslot 1000 mm channel, is a discreet, slot‑style drainage channel designed specifically for domestic block paving, patios, paths, and threshold applications. Manufactured from 100% recycled polypropylene, it combines a minimal surface appearance with reliable A15‑rated performance for pedestrian and light‑duty use. The Brickslot design features a narrow, offset 10 mm slot that aligns neatly with surrounding paving, creating a clean, unobtrusive finish ideal for contemporary landscaping.
Discreet 10mm inlet delivers a minimalist surface drainage solution for pedestrianised installations (A 15 Load Class). Black polypropylene channel with black plastic slot grating. Offset Brickslot grating is suitable with paving products up to 60mm thickness and allows installation adjacent to a wall.
Benefits
- Discreet 10mm inlet slot
- Channel manufactured from high-strength polymer concrete
- Channel shape anchors product into concrete surround
- 110mm knock-outs for connection to onward drainage
- Brickslot grating and access cover available in either galvanised steel or stainless steel
- The grating’s offset profile is suitable for use with paving products up to and including 60mm thickness and allows installation adjacent to a wall
- RainDrain® channels and Brickslot gratings interlock for a quick and easy installation
- Full range of accessories for a professional installation. Each run of RainDrain® Brickslot requires an access cover to the channel beneath to enable cleaning
| Product Brand | Aco |
|---|---|
| Material | Recycled Polypropylene |
| Load Capacity | A 15 |
| Weight (kg) | 1.63 |
| Depth | 148 |
| Length | 1000mm |
| Height | 148mm |
| Width | 129mm |
| Manufacturer Code | 319561 |
Certifications
- System CE marked and fully certified to Load Class A 15 BS EN 1433:2002
