L1/S75 Standard Cavity Lintel 1200mm
Item Code: 415750481
£39.45Ex VAT£47.34 Inc VAT
Click & CollectReady to collect from a branch in 30 minutes
DeliveryFree next day delivery options available (restrictions apply)
OverviewSpecifications
Data SheetsConversion & Materials Calculator
Our L1/S50 standard cavity lintels provide ideal structural support for cavity wall openings. The lintels are suitable for cavity widths of between 50-70mm. Its top hat' profile offers greater integral strength and improved thermal performance. The cavity lintels all arrive with perforations, inbuilt on the inner flange to offer a plaster key for additional work.
Benefits
- Top Hat' profile offers improved wall integrity and thermal performance
- Semi-pierced slots on the inner flange give an excellent key for the plaster finish
- Standard duty loading condition
- For 70-95mm cavities
| Type | Cavity Wall Lintel |
|---|---|
| Length | 1200mm |
| Weight (kg) | 7 |
| Material | Steel |
| Finish | Galvanised |
| Load Capacity | 12kN UDL @ 3:1 Ratio |
| Use | External |
| Size | L1/S75 |

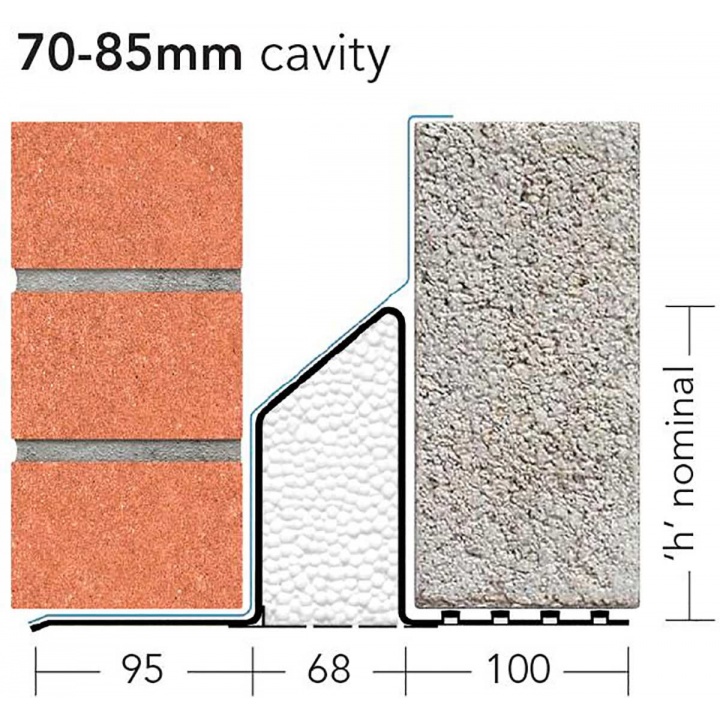

| Cavity Size | 70 - 85mm |
