L1/S100 Standard Cavity Lintel 1800mm
Item Code: 415751361
Overview

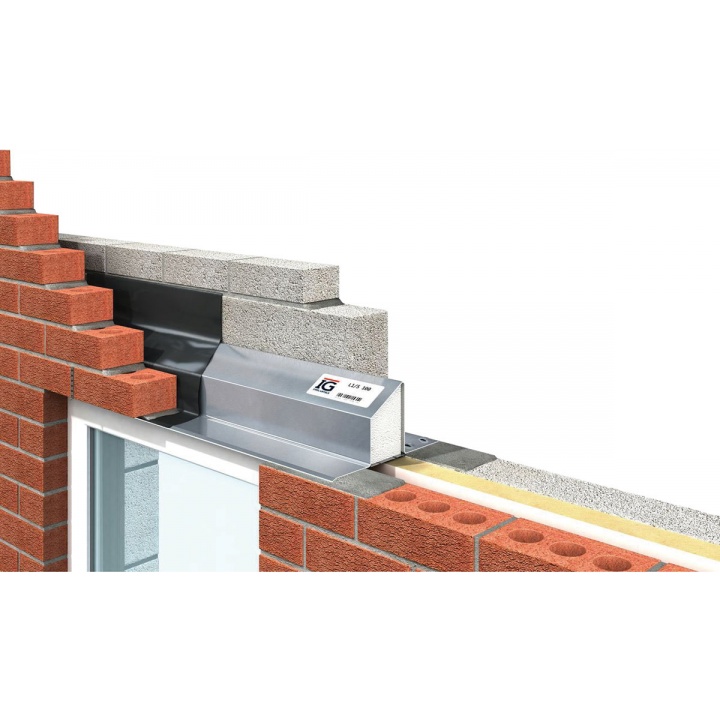

To support a wall construction of 100/100/100
Benefits
- Top Hat' profile offers improved wall integrity and thermal performance
- Semi-pierced slots on the inner flange give an excellent key for the plaster finish
- Standard duty loading condition
- For 95-110mm cavities
Specifications
| Cavity Size | 90 - 105mm |
|---|---|
| Weight (kg) | 14.02 |
| Load Capacity | 19kN UDL @ 3:1 Ratio |
| Length | 1800mm |
| Finish | Galvanised |
| Material | Steel |
| Use | External |
Datasheets
